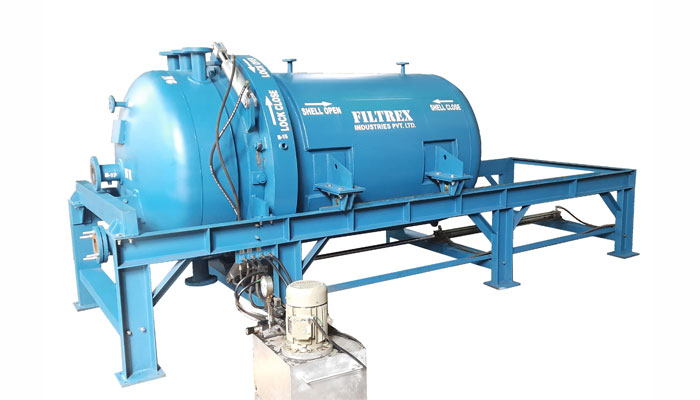

Horizontal leaf filter design is to handle larger filtration capacity. Also, there are few Industrial applications where filter cake is taken for further processing then disposal. Some special applications like sulphur filtration requires access to filter cake for the rough cleaning, horizontal leaf filter can only be used. The horizontal pressure leaf filter can be built in larger units than the vertical type. The housing of the filter leaves is moved outside the filter tank with a hydraulic system, which also operates the bonnet closure. The cake is discharged by a pneumatic vibrator. As the filter is opened during discharge it is easy to monitor the cake discharge.
The Horizontal Pressure Leaf Filter (HPLF) has emerged as a cornerstone solution for businesses seeking efficient and high-capacity filtration processes. Manufactured and supplied by Filtrex Industries in Thane, Mumbai, India, this advanced filtration system is designed to meet the stringent demands of various industries, ensuring optimal performance and reliability.
The Horizontal Pressure Leaf Filter is an innovative filtration solution tailored to handle larger filtration capacities. Unlike traditional vertical pressure leaf filters, the HPLF is designed to accommodate larger units, making it ideal for applications where high throughput is essential. This design not only enhances the filtration process but also provides easy access to the filter cake, which is crucial for industries that require further processing of the cake rather than simple disposal.
One of the standout features of the HPLF is its hydraulic system, which moves the housing of the filter leaves outside the filter tank. This system not only facilitates easy maintenance but also ensures smooth operation during the filtration process. The bonnet closure is also operated hydraulically, providing a secure and reliable seal. Additionally, the cake discharge is managed by a pneumatic vibrator, ensuring complete and efficient removal of the filter cake. As the filter is opened during discharge, monitoring the cake discharge becomes a straightforward task, enhancing overall operational efficiency.
The Horizontal Pressure Leaf Filter finds extensive use across various industries, including chemical processing, pharmaceuticals, food and beverage, and more. Its ability to handle large filtration capacities and provide easy access to the filter cake makes it a preferred choice for processes such as sulfur filtration, where rough cleaning of the filter cake is necessary.
The advantages of the HPLF are manifold. Its larger filtration area allows for higher throughput, reducing the time and resources required for filtration. The hydraulic system ensures smooth operation and easy maintenance, minimizing downtime. The pneumatic vibrator for cake discharge ensures complete removal of the filter cake, enhancing the overall efficiency of the filtration process. Moreover, the ability to monitor the cake discharge during the opening of the filter provides better control and ensures optimal performance.
Choosing the right HPLF model depends on the specific requirements of your industrial application. Filtrex Industries offers a range of models with varying filtration areas, filter leaf counts, cake volumes, and tank sizes. The selection sheet provided on their website offers detailed information on the available models, helping you make an informed decision.
For instance, the REHF-5-CS model offers a filtration area of 5 square meters, with 7 filter leaves and a cake volume of 150 dm3. On the other hand, the REHF-150-CS model provides a filtration area of 150 square meters, with 36 filter leaves and a cake volume of 4500 dm3. The empty weight and floor area of these models also vary, ensuring that there is a suitable option for every industrial setup.
Filtrex Industries has established itself as a leading manufacturer and supplier of Horizontal Pressure Leaf Filters. With years of experience in the industry, they have honed their expertise in designing and delivering high-quality filtration solutions. Their commitment to innovation and customer satisfaction ensures that every HPLF is built to meet the highest standards of performance and reliability.
The Horizontal Pressure Leaf Filter from Filtrex Industries is a testament to innovation and efficiency in industrial filtration. Its unique design, advanced features, and wide range of applications make it a valuable asset for industries seeking high-capacity filtration solutions. By choosing the HPLF, you not only enhance the efficiency of your filtration process but also ensure easy maintenance and reliable performance.
Whether you are in the chemical, pharmaceutical, or food and beverage industry, the HPLF offers a comprehensive solution to meet your filtration needs. With its hydraulic system, pneumatic vibrator, and easy access to the filter cake, the HPLF stands out as a superior choice in the world of industrial filtration.
HPLF SELECTION SHEET | ||||||||
SR.NO | FILTRATION AREA |
MODEL NO | FILTER LEAFS |
CAKE VOLUME (dm3) |
FILTER VOLUME (M3) |
TANK OD (MM) |
EMPTY WEIGHT (KG) |
FLOOR AREA |
1 | 5 SQ MTR | REHF-5-CS | 7 | 150 | 1.30 M3 | 900 MM | 1100 KG | 3500×1400 |
2 | 10 SQ MTR | REHF-10-CS | 13 | 300 | 1.80 M3 | 900 MM | 1500 KG | 4500×1400 |
3 | 20 SQ MTR | REHF-20-CS | 14 | 600 | 3.20 M3 | 1250 MM | 1800 KG | 5000×1500 |
4 | 25 SQ MTR | REHF-25-CS | 17 | 750 | 4.25 M3 | 1250 MM | 2100 KG | 5800×1800 |
5 | 30 SQ MTR | REHF-30-CS | 20 | 900 | 3.50 M3 | 1250 MM | 2500 KG | 6200×1800 |
6 | 50 SQ MTR | REHF-50-CS | 20 | 1500 | 6.54 M3 | 1600 MM | 4000 KG | 6300×2100 |
7 | 60 SQ MTR | REHF-70-CS | 24 | 1800 | 8.30 M3 | 1600 MM | 4500 KG | 6900×2100 |
8 | 70 SQ MTR | REHF-70-CS | 28 | 2100 | 8.90 M3 | 1600 MM | 4700 KG | 6900×2100 |
9 | 80 SQ MTR | REHF-80-CS | 32 | 2400 | 9.8 M3 | 1600 MM | 5500 KG | 8400×2100 |
10 | 100 SQ MTR | REHF-100-CS | 28 | 3000 | 11.5 M3 | 1850 MM | 6000 KG | 8300×2500 |
11 | 125 SQ MTR | REHF-125-CS | 34 | 3750 | 13.00 M3 | 1850 MM | 6200 KG | 9600×2500 |
12 | 150 SQ MTR | REHF-150-CS | 36 | 4500 | 14.8 M3 | 2000 MM | 10,000 KG | 9900×2700 |
NOTE: Cake volume is given in dm3, filter media/ bleaching earth density can be multiplied to given cake volume for Cake volume in KG.
