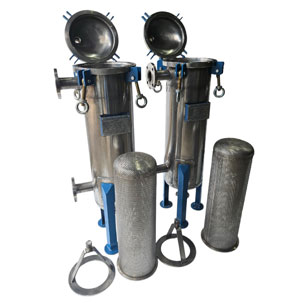

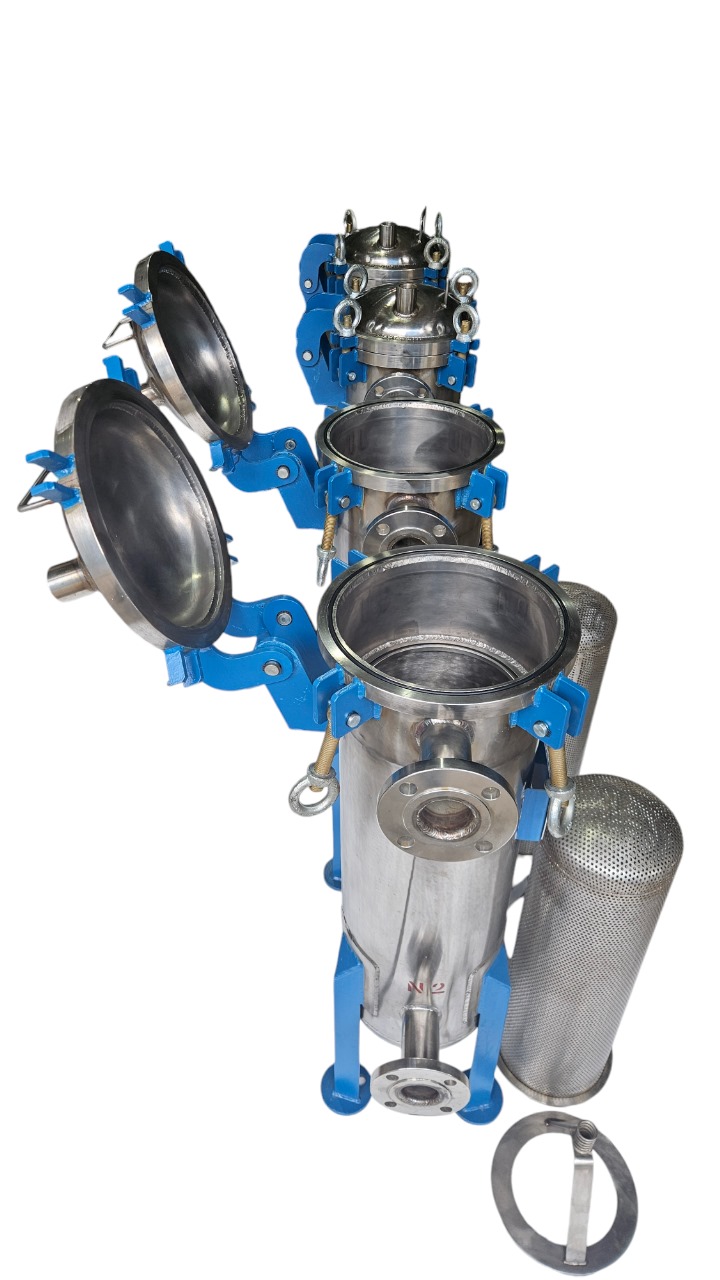

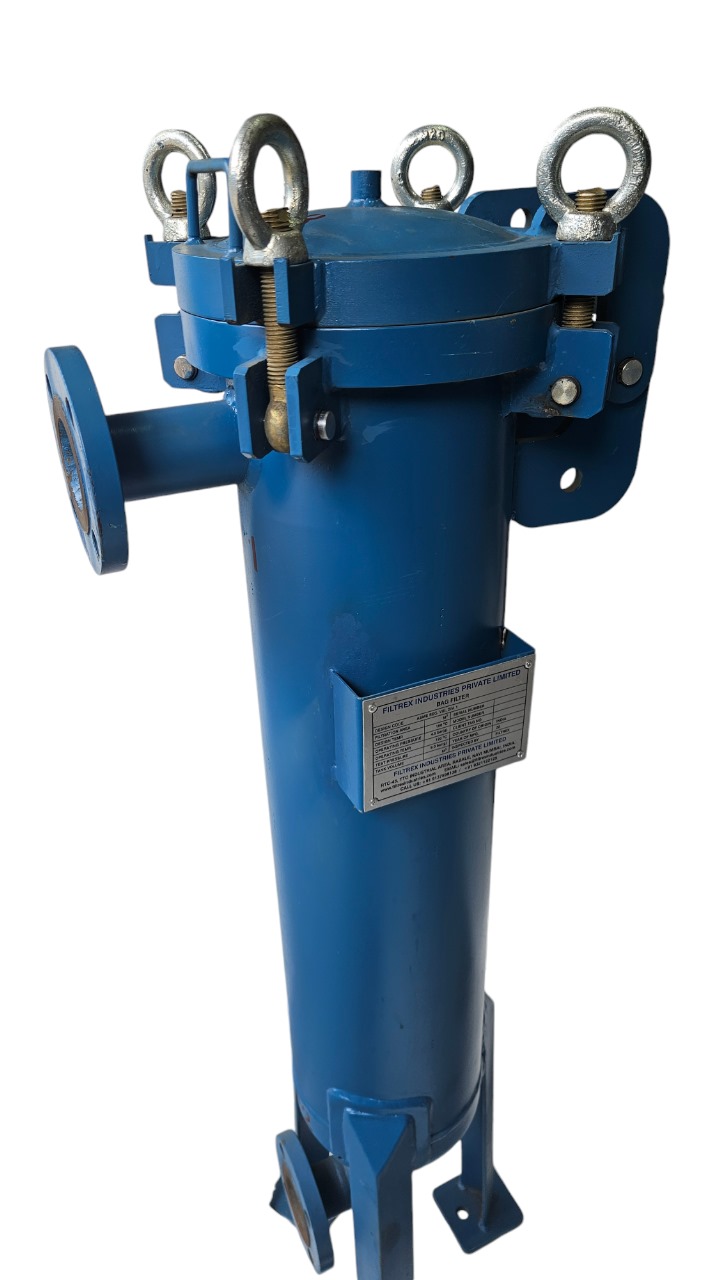

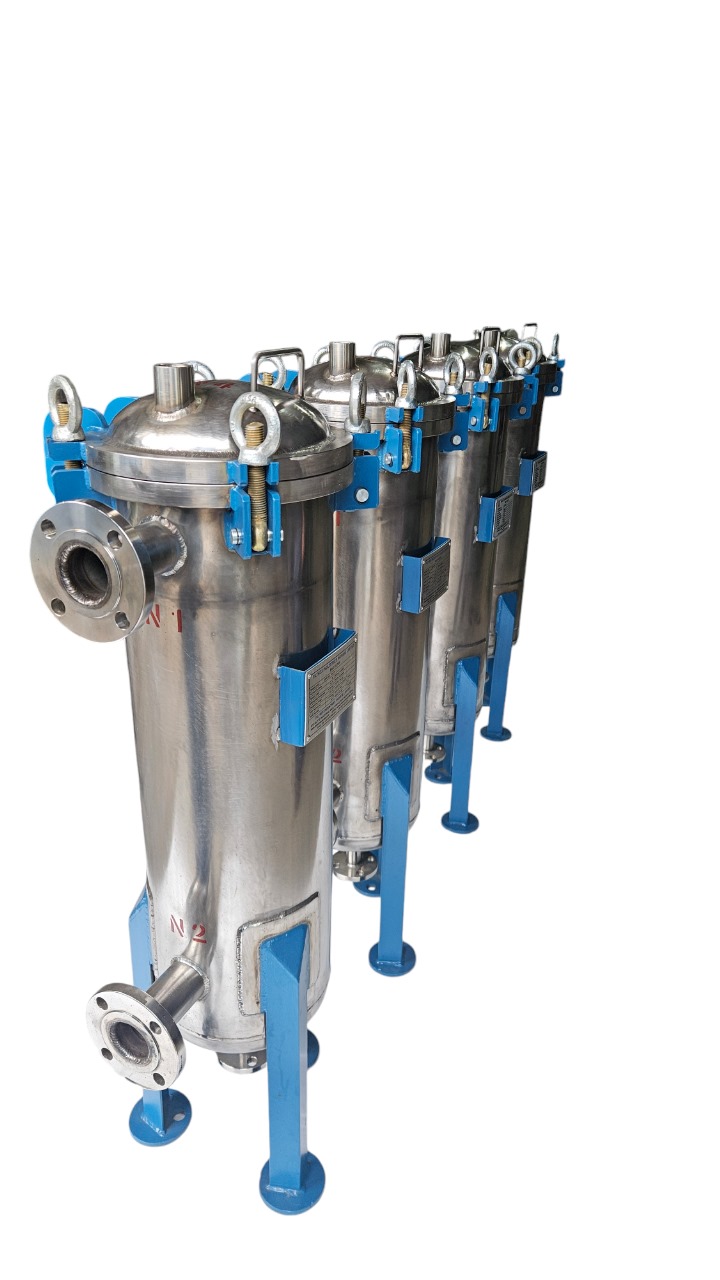

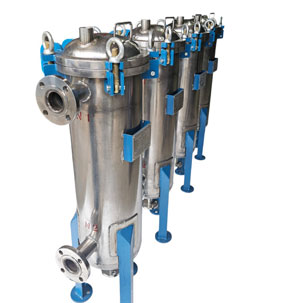

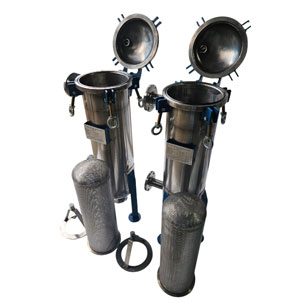

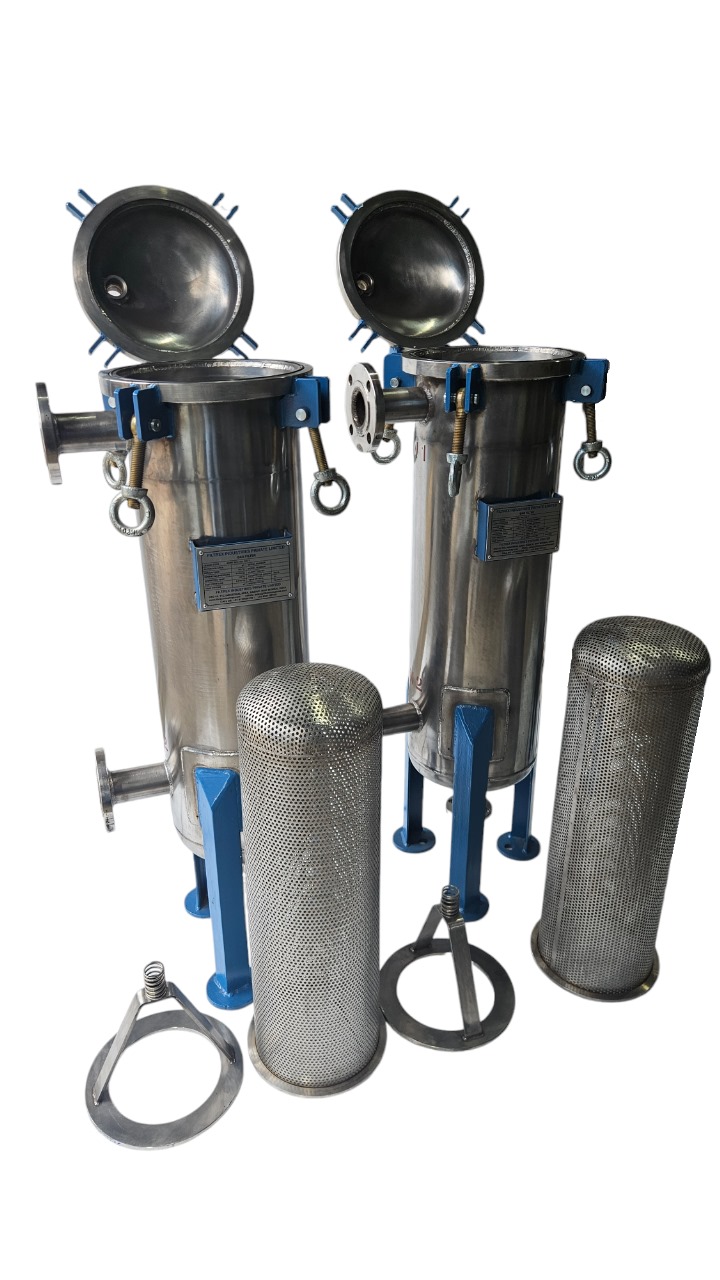

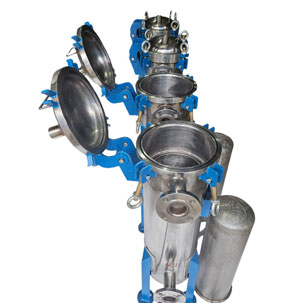

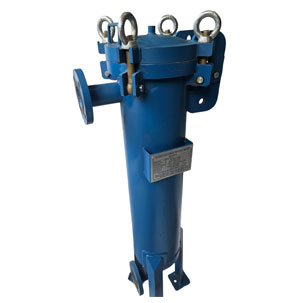

Bag Polishing Filter

Filtrex Bag Filters are designed simple in design and maintenance free. The liquid to be filtered flows from the top of the filter housing and is distributed equally amongst the filter bags. The liquid comes out at the bottom leaving the dirt inside filter bags.

Since the bag is locked in at the top of the vessel all the dirt is trapped inside the filter bag. The filter vessel never requires cleaning after use. Small flow resistance, reasonable structure, easy installation, acid and alkali resistance, corrosion resistance, easy cleaning and disinfection.

Bag filter systems are applied is various industries solutions. Treated liquids include: milk products, paint, lime, cooking oil, beer etc.

FEATURES

  • Basic & Simple principle of microfiltration.
  • Bags are properly supported by perforated basket.
  • Proper seal between unfiltered & filtered liquid.
  • Low pressure filtration.
  • Filter bag can be chosen as per the application

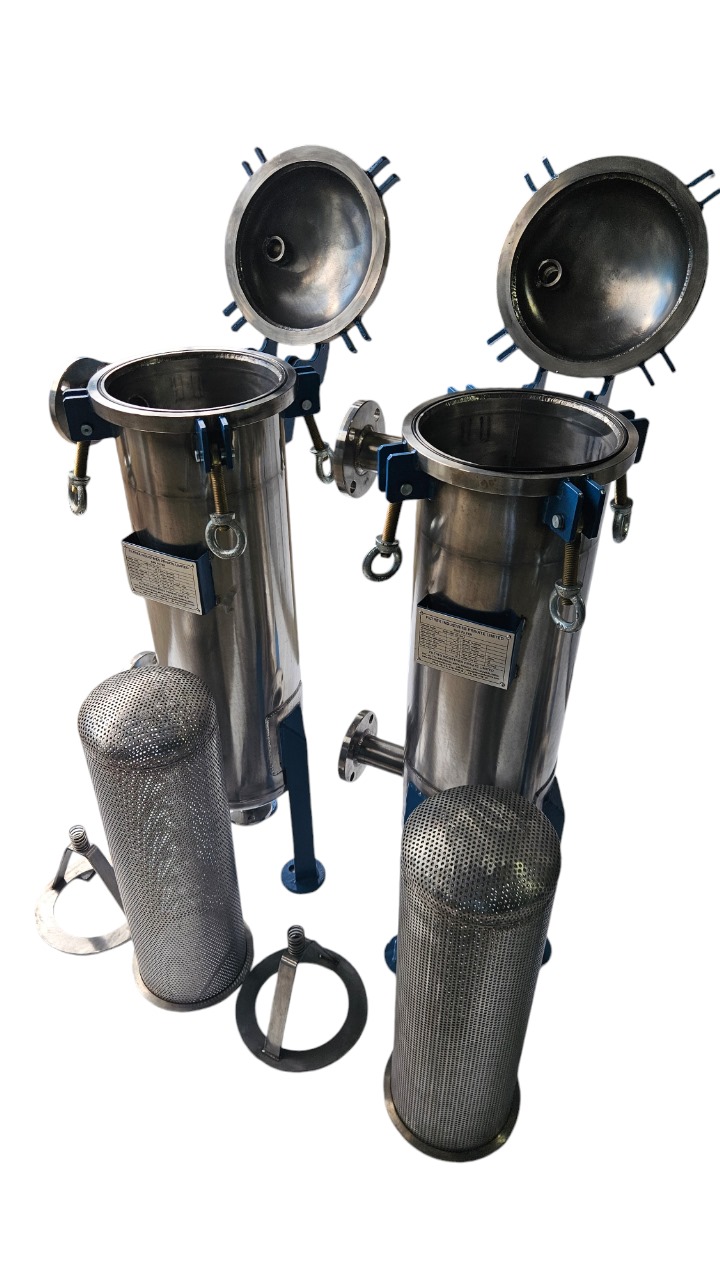

bag-polishing1

Advantages

  • Easily replaceable filter media/ bags.
  • Quick opening type body flange joints.
  • Bag replacement without disturbing the pipelines.
  • Solids retained in the bag, easy for disposal & Washable.
  • No Mechanical movement’s hence minimum maintenance.

HOUSING Specification

Material of Construction Carbon Steel / Stainless Steel All Grades (Jacketing Optional)
Size Available 0.3 SQ MTR to 3 SQ MTR
Filter Element Nylon, Polypropylene, Polyester, Cotton, Teflon coated bags, antistatic bags and also in Wire mesh baskets
Working Pressure 4.5 Kg/Cm2
Design Pressure 8 Kg/ Cm2
Design Temperature 160 DEG C
Working Temperature 100 - 120 DEG C
Model No. FILTER BAG DIMENSIONS (MM) NO. OF BAGS TYPE FILTRATION AREA FLOW M3/Hr. TANK OD INLET/ OUTLET CONNECTION TANK DRAIN CONNECTION
FIBF-03 160 X 550 1 SINGLE 0.3 M2 24.0 219 MM 2 INCH/ 50 NB 25 NB
FIBF- 05 210 X 750 1 0.5 M2 40.0 273 MM 2 INCH/ 50 NB 25 NB
FIBF-09 160 X 550 2 MULTI BAG 0.9 M2 72.0 550 MM 2.5 INCH/ 65 NB 25 NB
FIBF-12 160 X 550 4 1.2 M2 96.0 610 MM 2.5 INCH/ 65 NB 25 NB
FIBF-15 210 X 750 3 1.5 M2 120.0 650 MM 3.0 INCH/ 80 NB 40 NB
FIBF-18 160 X 550 6 1.8 M2 144.0 750 MM 3.0 INCH/ 80 NB 40 NB
FIBF-20 210 X 750 4 2.0 M2 160.0 730 MM 3.0 INCH/ 80 NB 40 NB
FIBF-25 210 X 750 5 2.5 M2 200.0 800 MM 4.5 INCH/ 100 NB 40 NB
FIBF-30 210 X 750 6 3.0 M2 240.0 890 MM 4.5 INCH/ 100 NB 40 NB
