Pulse Jet Candle Filter

Pulse Jet Candle Filter

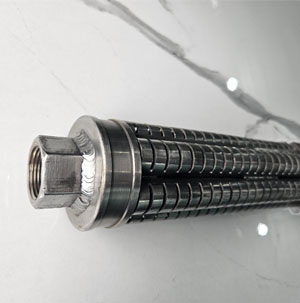

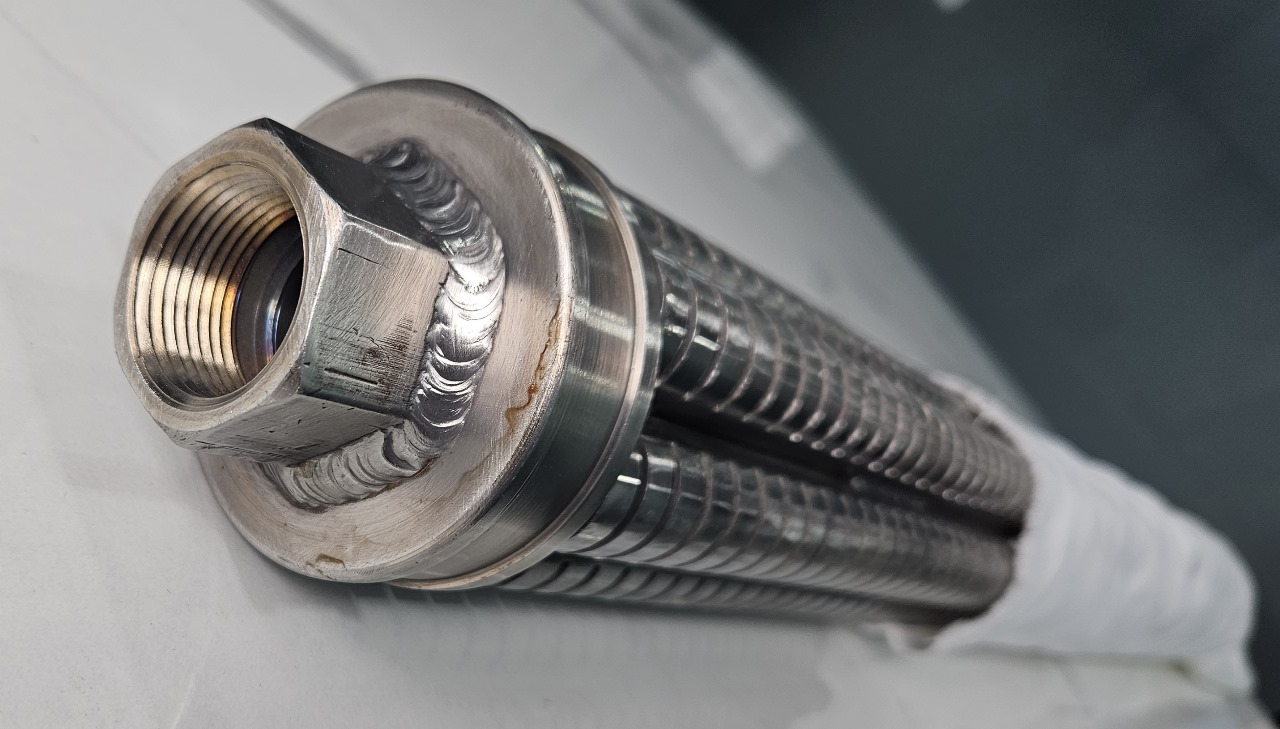

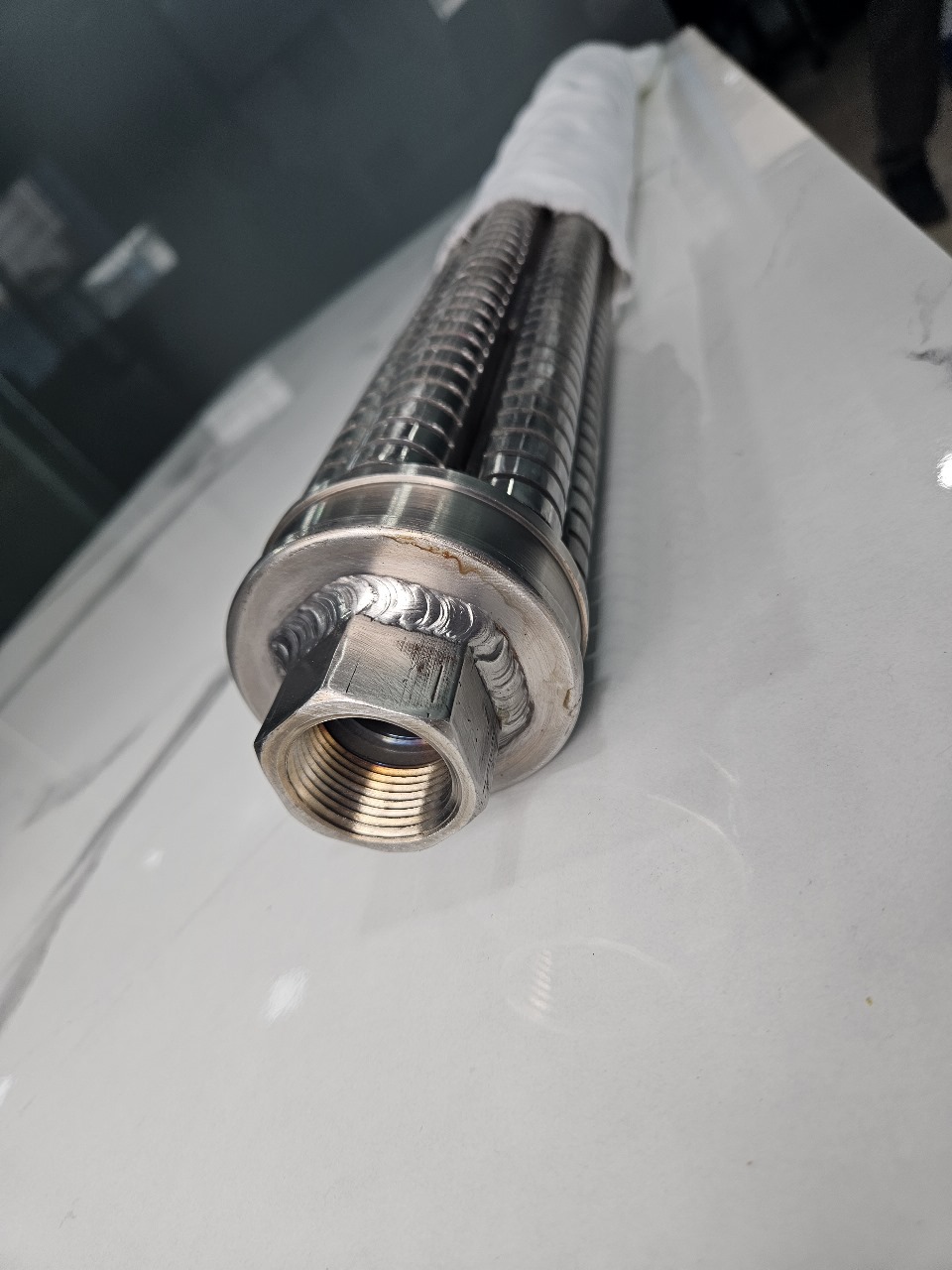

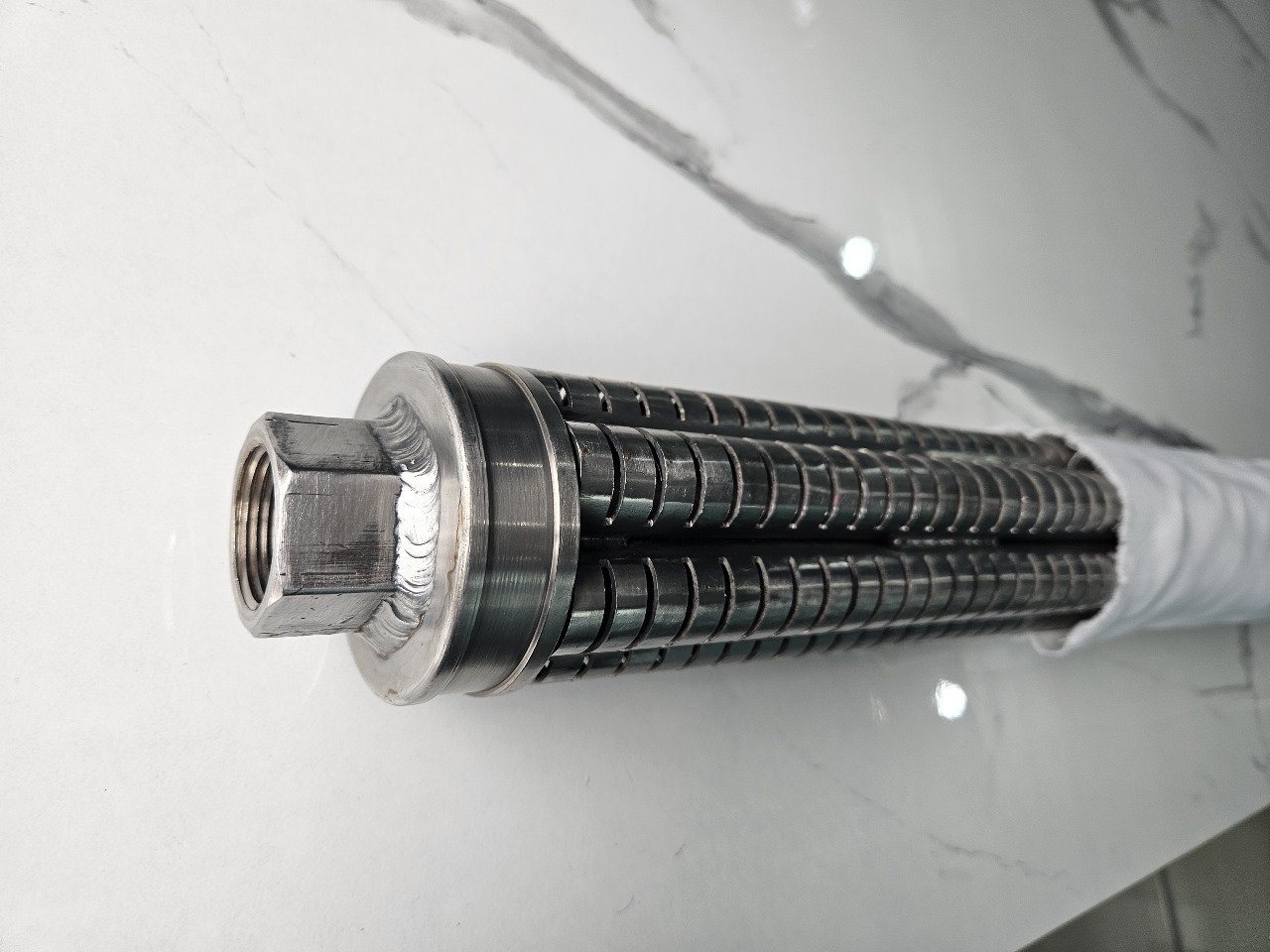

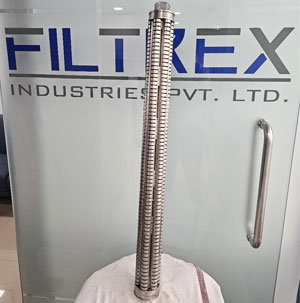

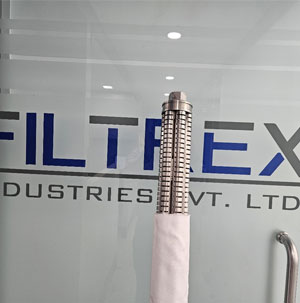

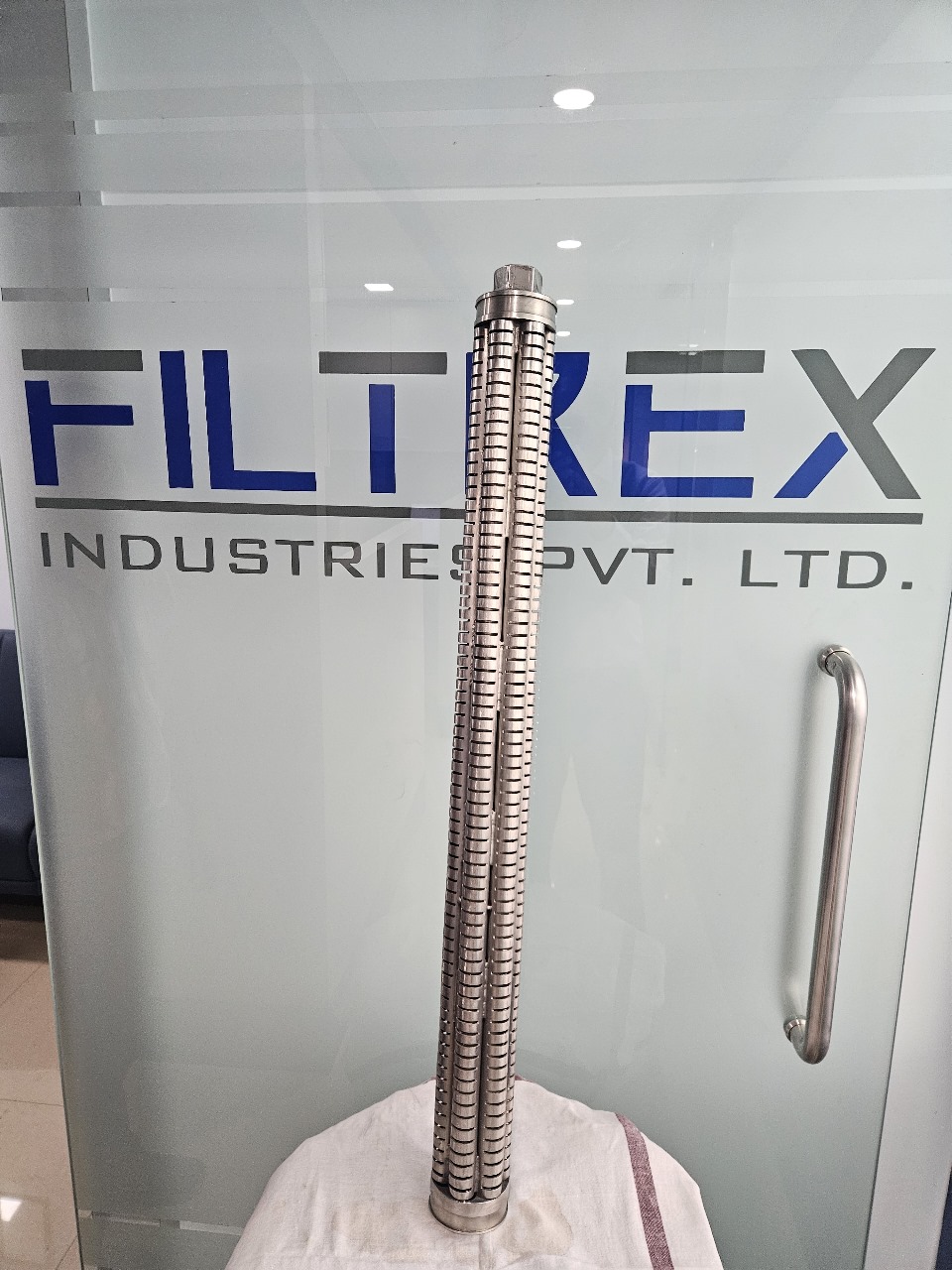

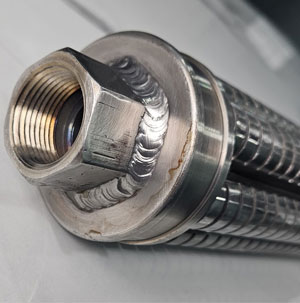

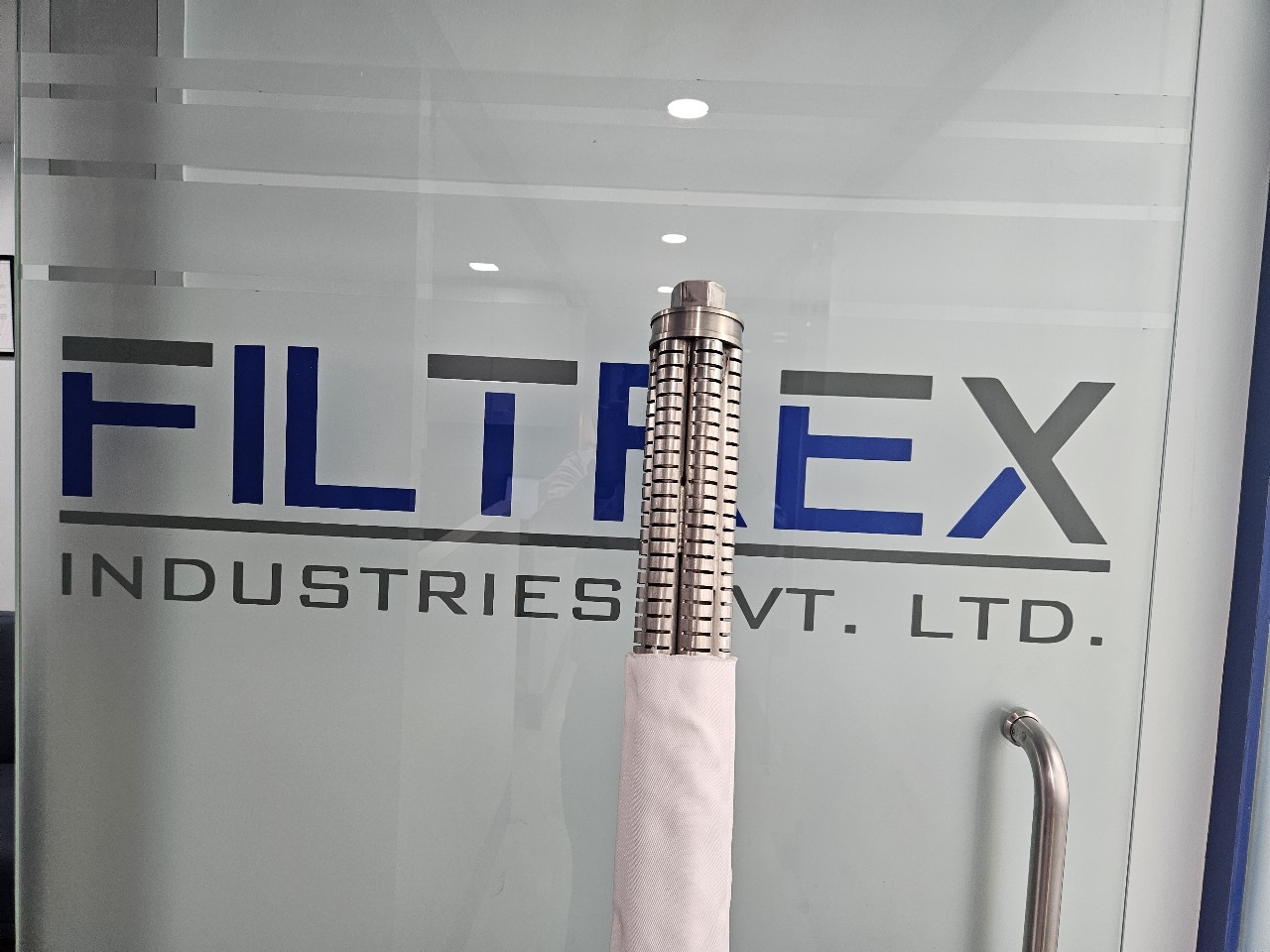

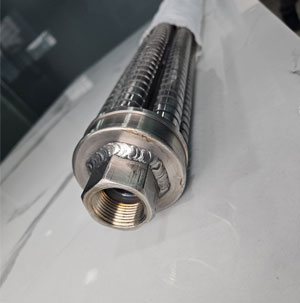

Pulse Jet Candle Filter by Filtrex Industries offers wide filtration applications, the filter unit has candle shaped filter elements. Each element consist of equal diameter pipe covered with seamless filter hose. This filter element can be supplied in Polypropylene, Polyester or Nylon.

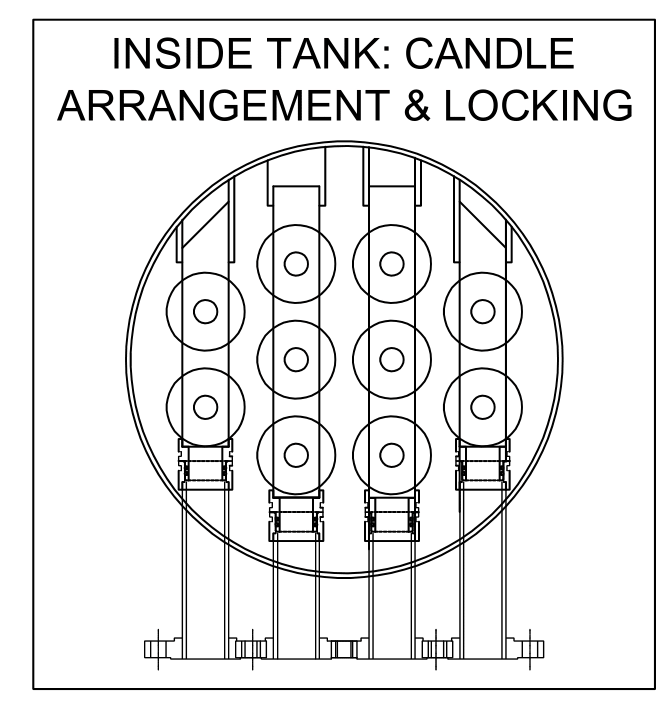

These candles are arranged vertically in a pressure vessel. The number of candles depends on filtration area required. Filtration and cake formation takes place under pressure. Wet or dry cake discharge is possible by means of blow back.
Two filters can be installed for continuous operation. The completely enclosed and hermetically sealed system is ideally suited for the filtration of water or solvent based toxic products.

Tank Specification

Material of ConstructionCarbon Steel / Stainless Steel
Size Available2 SQ MTR to 45 SQ MTR
Working Pressure 4.5 Kg/Cm2
Design Pressure 8 Kg/ Cm2
Design Temperature 160 DEG C
Working Temperature 100 - 120 DEG C

Features

  • High filtrate clarity
  • Large filtration area - small footprint (high headroom)
  • Totally enclosed operation - no contact with air/moisture
  • Positive pressure - no vacuum or lowered pressures necessary
  • Wet or dry cake discharge
  • Complete Heel Volume Recovery
  • Easy to automate - operation with minimum labour
  • Fast and effective cleaning without manual interference
  • Mechanically simple
  • Easy access to the filter Candles for maintenance.
  • Mechanically simple
  • Easy access to the filter Candles for maintenance.
  • Improved housekeeping
  • Steam heating optional
